Leica DISTO D5-Your powerful partner for outdoors
Leica Disto D5 World’s First: First laser distance meter with digital Pointfinder (4x zoom), large 2.4“ color display and ± 45°tilt sensor is now available!
The Leica DISTO™ D5 is designed with many functions and features to make measuring easier, particularly when you are working outdoors.
- Digital Pointfinder with 4x zoom
- Large colour display screen (2.4 inches)
- Inclination measurement up to ± 45°
- Power Range Technology™
- Robust with IP 54

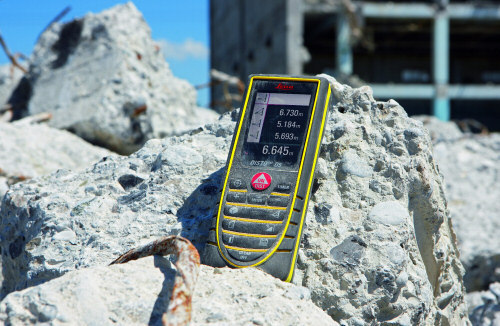

The Leica DISTO D5 is designed with many functions and features to make measuring easier, particularly when you are working outdoors. Its large, high resolution colour display presents the measurement results and additional information in an easy to read format. A wealth of functions helps you quickly and precisely to resolve almost any measurement situation. A robust housing gives optimum protection against splash water and dust.

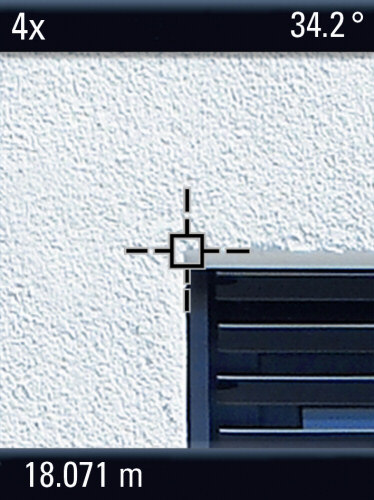

Digital Pointfinder
The integrated digital Pointfinder with a 4x zoom and 2.4“ color display makes finding the target at long distances much easier. Its high resolution capability provides a sharp, crystal-clear image, which allows measurements to be taken even in glaring sunshine.
Tilt sensor

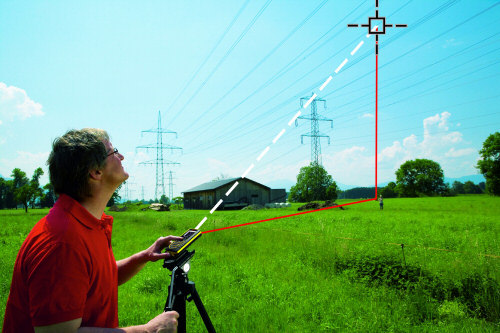

Thanks to the in-built tilt sensor, you can quickly and simply measure tilts up to ± 45°. The tilt sensor also allows you to measure absolutely horizontally or measure past obstructions (horizontal distance).
Power Range Technology™
The integrated Power Range Technology™ allows you to measure long distances very simply. Measure up to 100 m without a target plate, and even up to 200 m using a target plate, without having to take a single step.

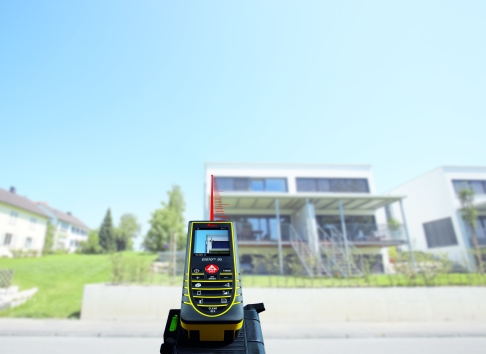

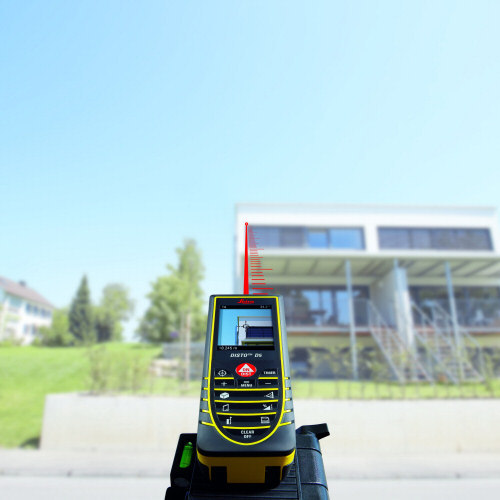

Spot-on measurement
The laser makes it possible! The laser dot is clearly visible, therefore you always know exactly where you are measuring, which is especially useful in difficult to access places. So you can take absolutely precise measurements, even over long distances.
Details displayed
The Leica Disto D5 having additional information about the measurements, e.g. room dimensions or angles, is available at the touch of a button.

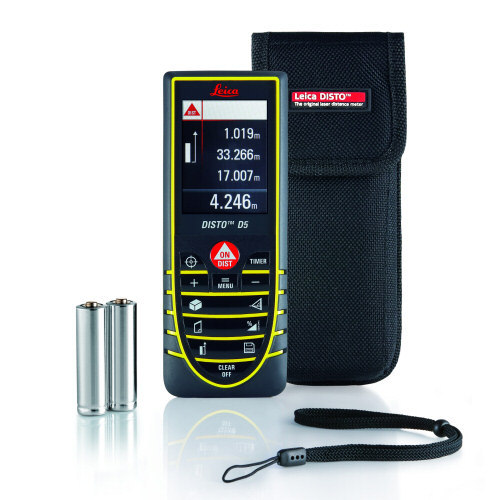

Leica Disto D5 Delivery Package:
- Holster
- Hand loop
- 2 AA batteries
- Manual / safety instructions
- Producer certificate M in accordance with DIN 55350-18-4.2.2
- Quickstart guide
| Features | Your advantages |
| Measuring range of 0.05 up to 200 m (0.16 ft up to 650 ft) typ. accuracy ± 1.0 mm (± 0.04 in)* |
Precise, quick and reliable measurements |
| Digital Pointfinder with 4x zoom and high resolution color display | Convenient measuring to distant objects, even in strong sunlight |
| Power Range Technology™ | Measure long distances, up to 100 m without and 200 m with a target plate |
| Tilt sensor | Measure vertical angles up to ± 45° at the touch of a button |
| Horizontal distance measurement using the tilt sensor | It’s no problem to determine distances despite obstructions |
| Trapezium function | Simple and quick measurement of roof slopes and facade areas |
| Pythagorean functions | Indirect height and width measurements at inaccessible positions |
| Detailed display | Additional measurement information available at a touch of a button, e.g. angle information |
Brouchure
Manuals
| Interior | Exterior | |||||||||
| Functions | DXT | D2 | D3a | D3a BT |
D5 | D8 | ||||
| Smart Horizontal Mode™ | • | • | ||||||||
| Min / max measurement | • | • | • | • | • | • | ||||
| Continuous measurement | • | • | • | • | • | • | ||||
| Addition / subtraction | • | • | • | • | • | • | ||||
| Area / volume measurements | • | • | • | • | • | • | ||||
| Pythagoras functions | • | • | • | • | • | • | ||||
| Room dimensions | • | • | • | • | • | |||||
| Horizontal distance | • | • | ||||||||
| Trapezium measurements | • | • | ||||||||
| Indirect measurements using tilt sensor |
• | |||||||||
| Line Levelling | • | |||||||||
| Technical Data | DXT | D2 | D3a | D3a BT | D5 | D8 | ||||
| Typical measuring accuracy | ± 1.5 mm | ± 1.5 mm | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm | ± 1.0 mm | ||||
| Range | 0.05 – 70 m |
0.05 – 60 m |
0.05 – 100 m |
0.05 – 100 m |
0.05 –200 m |
0.05 –200 m |
||||
| Measuring units | m, ft, in | m, ft, in, yd | ||||||||
| Power Range Technology™ | • | • | • | • | ||||||
| Distance in m Ø of the laser dot in mm |
10, 50, 100 m 6, 30, 60 mm |
10, 50, 100 m 6, 30, 60 mm |
||||||||
| Tilt sensor Measuring range Accuracy to the laser beam Accuracy to the housing |
± 45° ± 0.3° ± 0.3° |
± 45° ± 0.3° ± 0.3° |
360° ± 0.1° ± 0.1° |
|||||||
| Units in the tilt sensor | 0.0°, 0.0% | 0.0°, 0.00% mm/m, in/ft |
||||||||
| 4-fold digital viewfinder | • | • | ||||||||
| Store constant values | 1 | 1 | ||||||||
| Memory recall | 10 | 10 | 20 | 20 | 20 | 30 | ||||
| Time delay release (timer) | • | • | • | • | • | |||||
| Display illumination | • | • | • | • | • | • | ||||
| Free software | • | • | ||||||||
| Data interface | Bluetooth (Class 2) |
Bluetooth (Class 2) |
||||||||
| Measurements per set of batteries |
up to 5,000 |
up to 5,000 |
up to 5,000 |
up to 5,000 |
up to 5,000 |
up to 5,000 |
||||
| Multifunctional end-piece | automatic | manual | automatic | automatic | automatic | automatic | ||||
| Tripod thread | • | • | • | • | ||||||
| Batteries | AAA 2×1.5 | AA 2×1.5 | ||||||||
| Protection class | IP 65 | IP 54 | IP 54 | |||||||
| Dimensions | 122×55 ×28 mm |
111× 42 × 23 mm |
127×49×27.3 mm | 143.5×55×30 mm | ||||||
| Weigh with batteries | 159g | 90g | 149g | 150g | 195g | 205g | ||||
Leica Disto D5 Laser Measuring Meter Demo Video
