Leica FlexLine TS 02 plus Total Station

Leica FlexLine TS 02 plus – Best-In-Class Precision

The Leica Flexline TS02plus Total Station offers the most accurate Electronic Distance Measurement in its class. Therefore you can face any challenge where maximum precision and reliability is required. Additionally it offers a new cloud based theft protection. If your instrument is ever stolen, you can disabled it and ensure that it can no longer be used.

  • 5″ Angle Measurement Accuracy
  • 3500m Single Prism Range
  • R500 EDM – 500m Reflectorless Range
  • PinPoint EDM – The most precise in its class (1.5 mm + 2 ppm)
  • 24,000 Points Internal Memory
  • Data formats – GSI / DXF / LandXML / CSV / user definable ASCII formats
  • Largest graphical high-resolution display in its class
  • Full Alpha-Numerical Keyboard – Fast and error free entry
  • Intuitive icons to navigate through the menus
  • Quadruple Axis Compensation, IP55 Protection, Laser Plummet for Centering
  • FlexField Plus – Modern and intuitive onboard software for higher productivity
  • mySecurity – Unique theft protection locking mechanism

Contact Us for Best Price

Get Quote

Key Feature of Leica Flexline TS02plus Reflectorless Total Station

Leica Flexline TS02plus Pinpoint EDM
PinPoint EDM

  • The most precise in its class (1.5 mm + 2 ppm)
  • 500 meters without prism
  • Coaxial laser pointer and measurement beam
Leica Flexline TS 02plus Large Display
Large high-resolution display

  • At-a-glance viewing on the largest high-resolution display in its class
  • Everything at a glance without paging due to extra large size
  • Intuitive icons to navigate through the menus
Leica Flexline TS 02 plus Flexfield Plus Onboard Software
FlexField plus

  • Modern and intuitive onboard software for higher productivity
  • Low learning curve due to guided workflows
  • Icons to quickly verify instrument status
Leica Flexline TS02plus Full Alpha Numerical Keyboard
Alpha-numerical keyboard

  • Fast and error free entry of characters with full numeric keypad
  • Advanced black & white Keyboard
  • Intuitive graphics to fasten application tasks
Flexline TS02 plus Useful Tools
Useful tools

  • A range of tools, such as a trigger key and laser plummet, speed up your work
Flexline TS 02 plus My-Security
mySecurity

  • Unique theft protection locking mechanism
  • Prevents unauthorized persons usage
  • Increases data security

The successful Leica FlexLine TS02plus benefits from a best-in-class large high resolution display that’s complemented by the graphical easy-to-use FlexField plus onboard software. It is designed for standard measurement tasks, including a set of field application software for daily work. Whenever high distance measurement is required, you can face the challenge of this demanding task with the Flexline TS 02 plus. It offers the most accurate Electronic Distance Measurement in its class.

State-of-the-art simplicity with the standard-keyboard and the high resolution display

  • Low number of operating elements, whose functions are immediately apparent
  • At-a-glance viewing on the largest high-resolution display in its class
  • Optimally suited to new users and all those on the construction site who do not use the instrument daily

Best-in-class Electronic Distance Measurement (EDM)

  • With PinPoint EDM, FlexLine plus delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size and measurement time.
  • 1.5 mm + 2 ppm to prism
  • 2 mm + 2 ppm to any surface
  • Extremely fast (2 seconds)
  • 500 m range without a prism
  • Coaxial laser pointer and measurement beam

Work intuitively with the new Leica FlexField plus onboard software

  • Low learning curve due to guided workflows
  • Easy to understand graphics and icons
  • Icons to quickly verify instrument status
  • Faster operation due to graphics which make the interpretation of measurement values or text no longer necessary

Theft protection by Leica Geosystems – mySecurity

  • mySecurity gives you total peace of mind
  • If your instrument is ever stolen, a locking mechanism is available to ensure that the device is disabled and can no longer be used

Leica Total Station Flexline TS02plus Technical Specifications:

Angle Measurement (Hz, V)
Accuracy 1) 5″ (1.5 mgon)
Method Absolute, continuous, diametrical: at all models
Display resolution 0.1 / 0.1 mgon / 0.01 mil
Compensation Quadruple Axis compensation
Compensator Setting Accuracy 1.5″
Compensator range 0.07 gon
Endless Drives Smooth movements with no delayed response time
Distance Measurement with Reflector
Range 2) Round prism (Leica GPR1) 3500 m
Range 2) Reflective tape (60 mm x 60 mm) 250 m > 500 m 8)
Accuracy 3) Precise+: 1.5 mm + 2.0 ppm
Precise Fast: 2.0 mm + 2.0 ppm
Tracking: 3.0 mm + 2.0 ppm
Typical Measurement time 4) 2.0 s
Measurement time while in  “Precise+” mode 2.4 s
Distance Measurement without Reflector 7)
Range 5)  PinPoint R500 500 m
Accuracy 3)    2 mm + 2 ppm
Laser dot size At 30 m: approx. 7 x 10 mm
At 50 m: approx. 8 x 20 mm
Data storage / Communication
Internal memory Max.: 24’000 fixpoints,
Max.: 13’500 measurements
Interfaces Serial (Baudrate up to 115’200)
Data formats GSI / DXF / LandXML / CSV / user definable ASCII formats
Telescope
Magnification / Resolving power 30x / 3”
Field of View 1° 30’ (1.66 gon)
2.7 m at 100 m
Focusing range 1.7 m to infinity
Reticle Illuminated, 10 brightness levels
Keyboard and Display
Keyboard and Display Full Alpha-numerical keyboard with high resolution Black & White display, Graphics, 160 x 288 pixels, display illuminated, 5 brightness levels
Position Face I
Operating System
Windows CE 5.0 Core
Laserplummet
Type Laser point, 5 brightness levels
Centering accuracy 1.5 mm at 1.5 m
Battery
Type Lithium-Ion
Operating time 6) approx. 30 hours
Battery charging time 2.3 hours
Weight
TS including GEB211 and tribrach 5.1 kg
Environmental
Temperature range (operation) –20° C to +50° C
(–4° F to +122° F)
Arctic Version –35° C to 50° C (–31° F to +122° F)
Dust / Water (IEC 60529) Humidity IP55, 95%, non condensing
Leica FlexField plus Onboard Sofware
Included Application Programs: Survey; Stake Out; Station Setup including: Resection, Local Resection, Helmert Resection, Orientation (Angles & Coordinates), Height Transfer, Area (Plan & Surface), DTM Volume calculation, Tie Distance (MLM), Remote Height, Hidden Point, Backsight Check, Offset, Reference Line
Optional Extra Application Programs: Reference Arc; Reference Plane; COGO; Road 2D
Theft protection
mySecurity, PIN/PUK Code

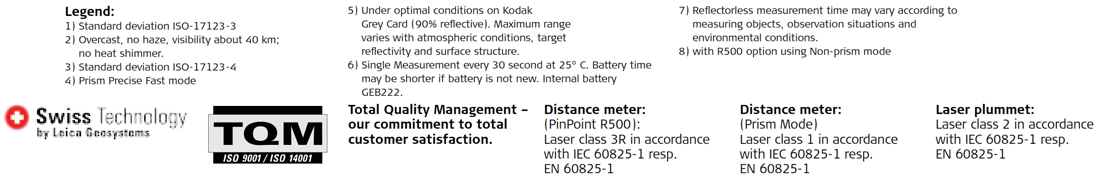

Leica FlexLine TS02plus Specs

Leica Flexline TS02plus R500 Electronic Total Station Scope of delivery

  • Leica Flexline TS02plus R500
  • Battery GEB 212
  • Battery charger GKL 311
  • Data Downloding Cable GEV267
  • Flexoffice Standard Software
  • Carrying Case
  • Prism with Holder & Target Plate
  • Telescopic Prism Pole
  • Heavy Duty Wooden Tripod
Get Quote Now

Leica FlexLine TS02plus: Best-in-class Precision

The new Leica Flexline TS02 plus has a modern look and feel and includes a new Ergo focus telescope that was developed specifically for Manual Total Stations use to improve target aiming with greatly improved ergonomics.

Contact us for Leica Flexline TS 02plus Best Price..
