The Leica NA 332 automatic (surveyors) level has been developed for professionals who are looking for the highest quality results day by day. With the many obstructions and uneven surfaces on construction and building sites, the NA332 optical levels rise to the occasion and ensure the straightest and safest construction possible. The NA300 Series is your reliable partner for accurate measurements and high quality results.
Thanks to the ergonomic design, NA 300 Series levels are convenient to operate. Add in the simple and easy handling of these levels, and you have the perfect partner on any job site.
- Leveling Accuracy ± 1.8mm (ISO 17123-2 certified)
- Telescope Magnification 32x
- Minimum focus distance: < 1m
- IP54 dust and splash water protected
- Distinctive design and proven technology, inside and out
- Protected shape for increased ergonomic handling while ensuring the highest quality results
- Simple handling for quick and accurate measurements for levelling needs
- Manufactured for the most rugged sites and the harshest conditions
Key Features of Leica NA332 Auto Level
Professionals face many obstructions on site. Whatever the leveling challenge, Leica NA 332 construction levels overcome. Rely on the known expertise of Leica Geosystems for the best quality and performance. On your terms, on your site, Leica Geosystems and the Leica NA332 Dumpy Levels are your trusted partners for accurate measurements every time.
UNIQUE DESIGN
Whether you’re facing basic demands or you need more support, the unique design of the Leica NA300 Series of automatic (Optical) levels can meet you wherever you are in the building and construction field. With a better protected shape, these rugged levels offer increased ergonomic handling while ensuring you receive the highest quality results at the best price value.
ACCURATE
Leica NA 332 auto levels have been engineered for daily leveling tasks. Whatever the need, these levels measure with the highest precision and accuracy. These automatic (optical) levels provide the highest in both while being ergonomic in their handling and rugged for daily use in the harshest conditions.
SIMPLE
A perfectly designed mirror makes it extremely easy to adjust the horizontal level with the highest possible accuracy and confidence. The Leica NA 332 builders level – along with all our automatic (optical) levels – are made for everyday use for any site.
PROTECTED
Leica Geosystems offers unbeaten service with all of its NA Series levels. The IP54 standard ensures the highest quality measurements even in the most challenging environments.
Specifications of Leica NA 332 Automatic Level | |
|---|---|
| Standard deviation for 1 km double levelling | ±1.8mm (ISO 17123-2 certified) |
| Telescope | |
| Telescope image | Upright |
| Magnification | 32x |
| Objective aperture | 36mm |
| Shortest target distance from instr. axis | < 1.0m |
| Field of view at 100 m | < 2.1m |
| Multiplication factor | 100 |
| Additive constant | 0 |
| Compensator | |
| Working range | ± 15′ |
| Setting accuracy (standard deviation) | <0.5″ |
| Sensitivity | 8’/2 mm |
| Horizontal Circle | |
| Graduation | 360° |
| Graduation interval | 1° |
| Weight (net) | 1.5 kg |
| Operating temperature range | –20° C to +40° C |
| Protection class | IP54 dust and splash water protected |
Leica NA332 Auto Level Art. No. 840383 Scope of delivery
- Leica NA 332 Level
- Carrying Case
- Allen Key
- Telescopic Aluminium Tripod
- Levelling Staff
- Manufacturer Certificate
- User manual on CD

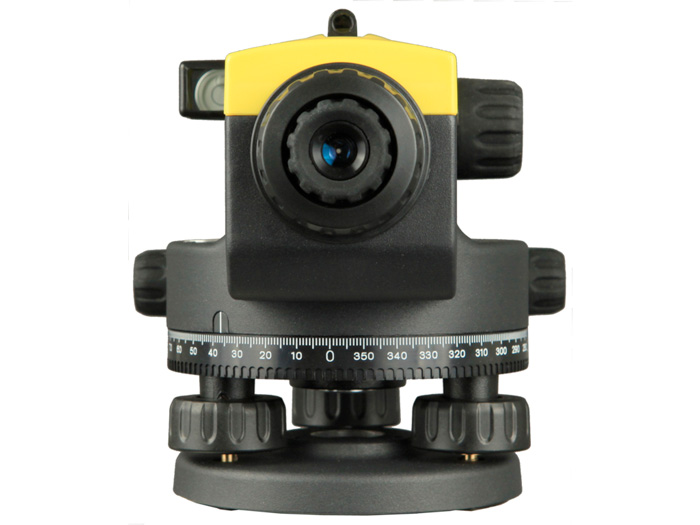

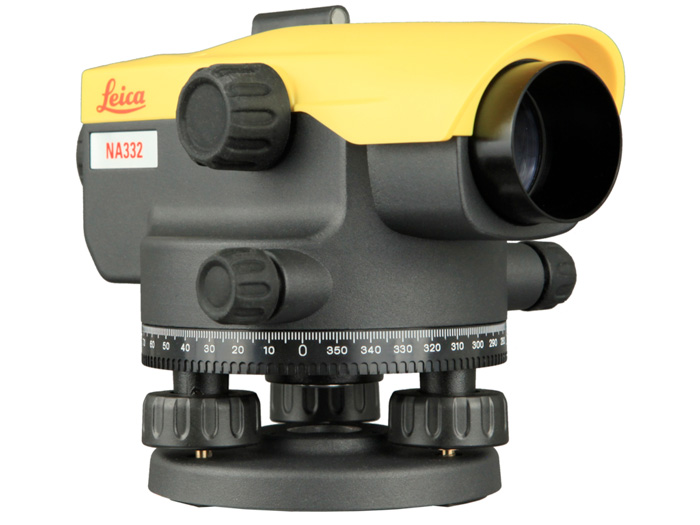

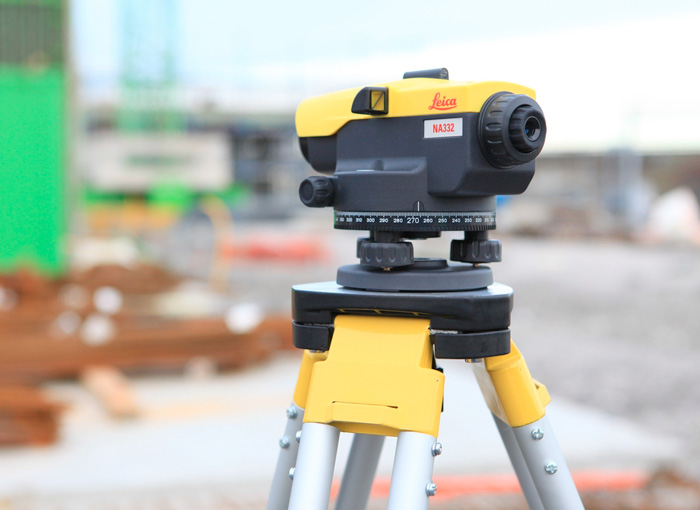

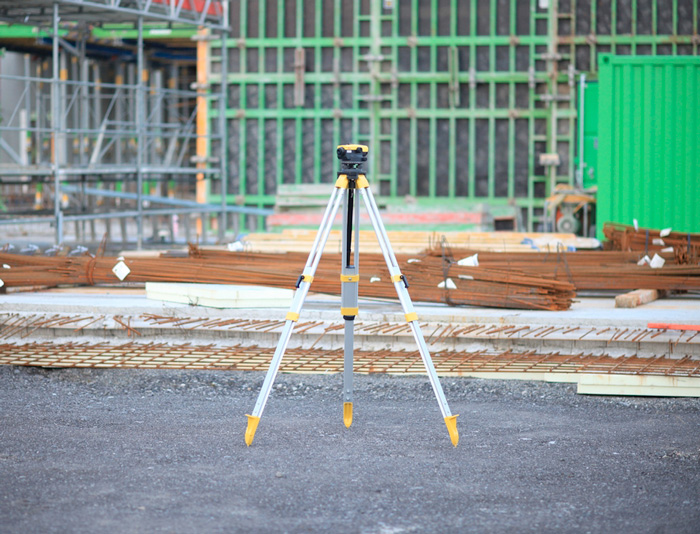

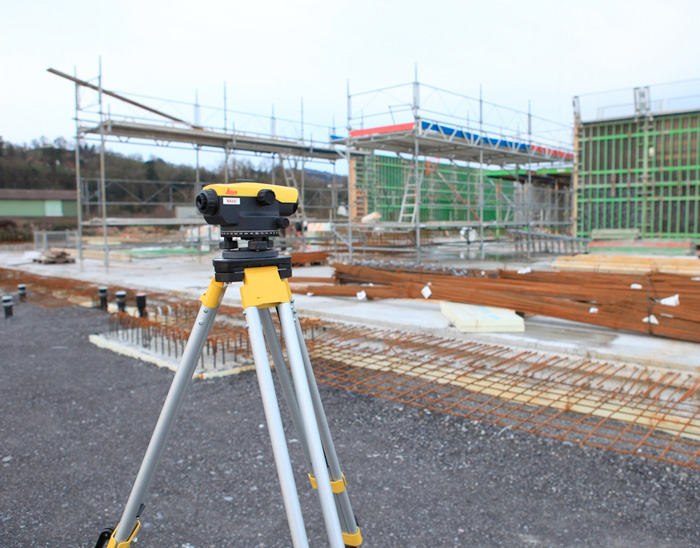

Leica Auto Level NA 332 Picture Gallery
