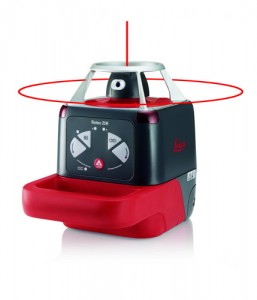

Leica Roteo 25H – Horizontal rotating laser
The Leica Roteo 25H offers fully automatic horizontal self-levelling and even the possibility of inclining the levelling plane on the instrument.The detector supplied in the set efficiently locates the laser beam over long distances: An appealing package for exterior works.
Fully automatic horizontal laser
Inclination can be set
Removable protective cage
150 m range laser detector
90° plumb beam
Outstanding battery life for working without interruption
Laying paving
Inclinations can be directly set on the Leica Roteo 25H, making paving laying to child’s play, e.g. in a garage entrance or garden.
Marking without attachments
The clamp rod and mounting platform is fitted between the floor and ceiling. This eases the task of marking walls and provides you with a stable mount for working heights up to 290 cm.
All-round cost and time savings
Our practical product solutions with the available accessories, such as the remote control, detector and target plate, allow you to work more efficiently an save time and money. You can work alone, without an assistant.

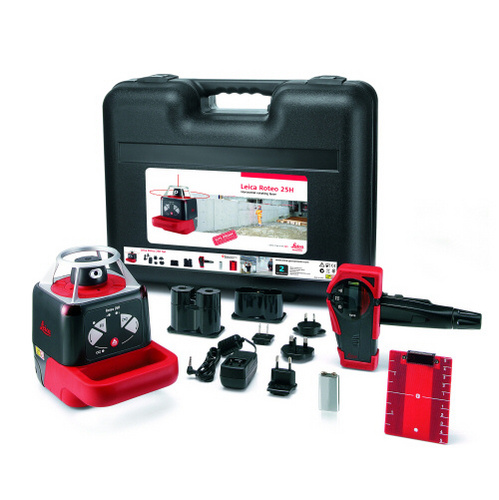

Leica Roteo 25H Delivery Package:
Leica Roteo 25H rotating laser
R250 detector with clamp
9V-Battery for the detector
Battery holder for alkaline batteries
Rechargeable NiMH battery pack
International charger
Red target plate
| Leica Roteo 25H Technical Specifications: | |
| Operating range (rotating beam) | up to 150 m (500 ft) radius with laser receiver |
| Self-leveling accuracy | ± 3 mm at 30 m (1.8’’ at 100 ft) |
| Automatic self-leveling laser | horizontally |
| Self-leveling range | ± 4.5° |
| Rotating speed | 600 rpm |
| Battery types | D-cell (mono), 2 x 1.5 V or rechargeable battery pack |
| Battery life | 50 hours (rechargeable) up to160 hours (alkaline batteries) |
| Protection class | IP 54, dust- and splash-proof |
