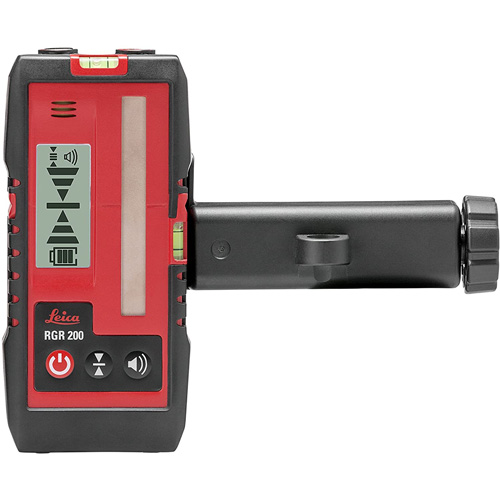

Leica RGR 200 Laser Receiver – Works precisely with red and green Lino line lasers, 635 nm + 525 nm
The working range of line and rotation lasers, especially in bright conditions, can be increased with a laser receiver. Visual and audio signals help you to find the laser line or plane quickly and easily.
The Leica RGR200 Laser Receiver increases the working range of line and rotation lasers, especially in bright conditions. Visual and audio signals help you to find the laser line or plane quickly and easily. This device can be utilized with most pulse style cross line lasers including the Leica Lino Lino L2s, L2, L2G, L2P5, L2P5G and L4P1. With a range of up to 80m, it also has a large reception window of 85 mm to find the laser beam quickly.
- For finding red pulsed laser beams over longer distances or in difficult light conditions
- Localizes the laser beam at a distance of up to 80m
- Large reception window of 85 mm to find the laser beam quickly
- Optical and acoustic signals help to find the laser plane
- Receiver holder with quick adjustment feature for wider scope of use
- Ergonomically designed display on the front and the back
- IP 65 protected against dust and water
- Withstands drop-heights of up to 1.2m due to impact-absorbing rubber pads
- Rugged receiver bracket for strong attachments to poles and levelling staffs
- Strong magnets allow for metal attachment
Leica RGR 200 Laser Receiver Technical Specifications:
| Working range* | 2 m – 80 m (6.6 ft – 262 ft) |
| Accuracy (switchable) | ±1.0 mm (±0.04 in) / ±3.0 mm (±0.12 in) |
| Detection window | 85 mm (3.3 in) |
| Detection angle | 130° |
| Detectable spectrum | 635 ± 5nm (red) / 525 ± 5nm (green) Class 2 acc. IEC 60825-1 |
| Illuminated display | Front side and back side |
| Acoustical signal | 100dB / 80dB / 0dB |
| Protection class | IP 65 (IEC 60529) dust and jet water |
| Drop resistance | 1.2 m (3.9 ft) |
| Battery type/life | 2 x AA 1.5 V / 40+hours |
| Low power alert | Digital display |
| Dimensions (L x W x H) | 158 x 73 x 26 mm (6.22 x 2.87 x 1.02 in) |
| Weight with batteries | 250 g (0.55 lbs) |
| Automatic shut-off | 30 min without detection |
| Operating temperature | -10…+50 °C (+14…+122 °F) |
| Storage temperature | -25…+70 °C (-13…+158 °F) |
| Size Info’s Box | Single 1 pcs = 14.8 cm x 21.5 cm x 8.2 cm Weight: 0.7 kg |
*depending on lightning conditions
