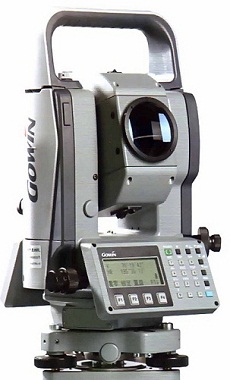

Topcon Gowin Total Station TKS-202
Finest Quality, Only From Gowin
Leveraging on Topcon’s optimal manufacturing excellences; GOWIN ensured every single production process of the TKS-202 Total Station is in compliance with international standards and went through strigent quality control.
From fully-automated EDM trials, to 48 hours of non-stop extreme environment conditioning testing, GOWIN Total Station demonstrated its durability and operational superiority, highlighting GOWIN commitment to constantly improve.
The Topcon Gowin Total Station TKS-202 is ideally suited for all jobs requiring the accuracy and versatility of a high-quality total station. Its ease of use makes it ideal for construction jobs like layout. It’s 2-second accuracy makes it perfect for the most demanding surveying and measuring tasks. Its low price makes it the right choice for every budget.
The Topcon Gowin Total Station TKS-202 provides an accurate, low cost measuring solution featuring:
- 2″ angle accuracy provides 1/16th of an inch accuracy at 1,000ft.
- Dual keyboards with and expanded numeric keypad for faster data input.
- Accurately measure up to 2,000m with a single prism.
- Internal data storage for up to 24,000 points.
- Single axis compensator with ±3′ compensating range.
- IP54 environmental protection rating.
With a full alpha-numeric keypad and onboard memory that will hold up to 24,000 points, a 14-hour Li-on battery life, and an IP54 environmental rating, the Topcon Gowin Total Station TKS-202 is a full-featured instrument designed to meet the most rugged demands.
Onboard software includes functions such as road, missing line measurement and resection. For added efficiency, it is compatible with all current Topcon® and Sokkia® field controllers with a GTS series conventional total station driver installed.
Why work with out-dated instruments? The new Topcon Gowin Total Station TKS-202 lets you economically add the versatility and efficiency of a high-quality total station for all your layout, measuring, and surveying jobs.
Topcon Gowin Total Station TKS-202 Technical Specifications:
| Model Name | Gowin TKS-202 | |
|---|---|---|
| Telescope | Objective Lens Diameter | 45mm (EDM: 50mm) |
| Magnification | 30x | |
| Image | Erect | |
| Field of View | 1°30′ | |
| Resolving Power | 3.0″ | |
| Min. Focus Distance | 1.3m | |
| Angle Measurement | Accuracy | 2″ |
| Method | Absolute | |
| Minimum Reading | 1″/5″ | |
| Distance Measurement | ||
| Distance Range | 1 Prism | 2,000 |
| 3 Prisms | 2,700m | |
| Accuracy | ±(+2mm + 2ppm x D**)m.s.e. | |
| Measuring Time | Fine Measurement Mode | 1.2 sec.(Intial 4 sec.) |
| Coarse Measurement Mode | 0.7 sec. | |
| Tracking Measurement Mode | 0.4 sec. | |
| Atmospheric Correction Range | Yes | |
| Prism Constant Correction Range | Yes | |
| Software & Memory | ||
| On-Board Software Functions | Data Collection, Resection, Road, Stakeout, Area Calculation, Height Measurement, etc. | |
| Internal Memory | 24,000 points | |
| Interface | RS-232C (Standard) | |
| Display | Display Unit | Graphics LCD, 2 Sides |
| Keyboard | 24-Alpha-Numeric Key | |
| Tilt Correction (Automatic Index) | ||
| Tilt Sensor | Yes | |
| Correction Method | Liquid Type | |
| Compensating Range | ± 3′ | |
| Level Senstivity | ||
| Plate Level | 30″/2mm | |
| Circular Level | 10’/2mm | |
| Optical Plummet Telescope | ||
| Image | Erect | |
| Magnification | 3x | |
| Focusing Range | 0.5 to infinity | |
| Field of View | 3° and above | |
| Others | ||
| Protection against water and dust*** | IP 54 (with BT-L1 Battery) | |
| Operating Temperature | -20°C~+50°C (-4°F~+122°F) | |
| Dimension | 336 (H) x 184 (W) x 172 (L)mm | |
| Weight (with Battery) | 4.8Kg | |
| On Board Battery | BT-L1 (Lithium-ion) | |
| Battery Charger | BC-L1 | |
| Maximum Operating Time | ||
| Including Distance Measurement | 14 Hours | |
| Angle Measurement Only | 60 Hours | |
| Output Voltage | DC 10V | |
